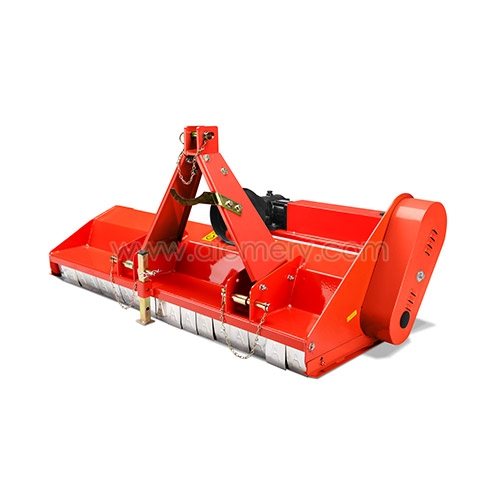

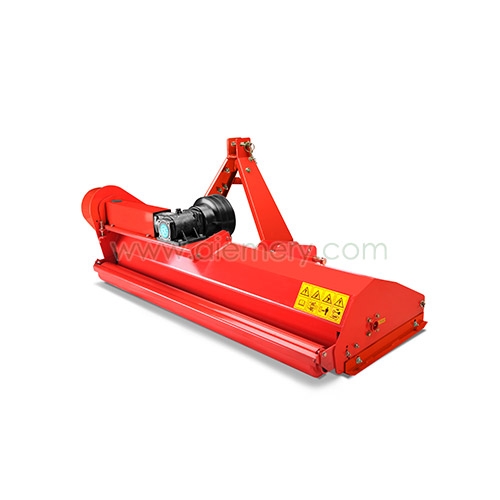

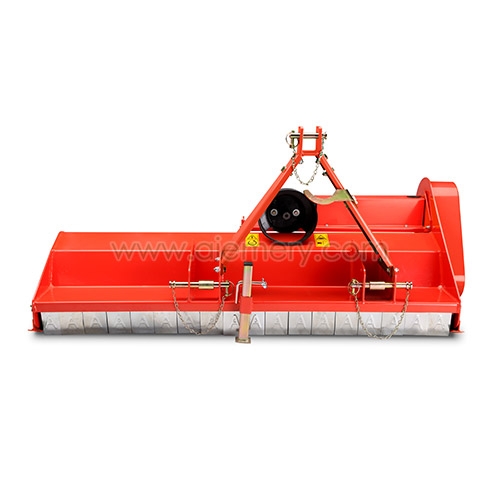

EF Flail Mower
Compact rear mounted grass mulcher, for tractors from 12 to 35 HP.
It is suited for mulching light grass on green areas, parks and sport courts.
Standard 3Pt. Category 1 hitch mount. Designed for 14HP+ Rated Tractors
Light duty flail mower
- This flail mower is designed for cutting grass, cover crops, swap to the Hammer/Mulching Blades and it is great for mulching tree pruning and roadside applications
- Comes with Reversible Y blades with Precise blade overlap
- Adjustable finished cutting height (both Rear Roller & Skids)

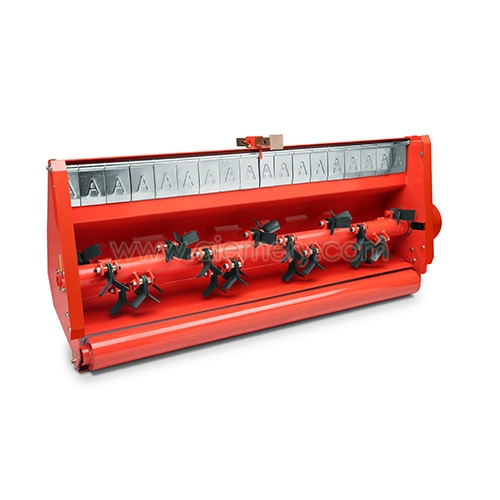

- Balanced Rotor and Shaft
- Change to Hammer/Mulching Blades and this is great for use in orchards and Vineyards
- Powder Coat Paint Finish
Main Specification on EFseries Flail Mower:
MODEL | EF85 | EF95 | EF105 | EF115 |
DIMENSIONS(L*W*H) | 950x687x722mm | 1050x687x722mm | 1150x687x722mm | 1250x687x722mm |
STRUCTURE WEIGHT | 100㎏ | 115㎏ | 130㎏ | 145㎏ |
CUTTING WIDTH | 829mm | 929mm | 1029mm | 1129mm |
WORKING EFFICIENCY | 2500-6500㎡/h | 2500-7500㎡/h | 3000-8000㎡/h | 3300-9000㎡/h |
PTO TURNNING SPEED | 540r/min | 540r/min | 540r/min | 540r/min |
PTO SPLINE | 6x8x800mm | 6x8 x800 mm | 6x8 x800 mm | 6x8 x800 mm |
POWER REQUIRED | 14-18hp | 16-20hp | 20-30hp | 20-30hp |
MODEL | EF125 | EF135 | EF145 | EF155 |
DIMENSIONS(L*W*H) | 1350x687x722mm | 1450x687x722mm | 1550x687x722mm | 1650x687x722mm |
STRUCTURE WEIGHT | 160㎏ | 175㎏ | 190㎏ | 210㎏ |
CUTTING WIDTH | 1229mm | 1329mm | 1429mm | 1529mm |
WORKING EFFICIENCY | 3700-9800㎡/h | 4000-10600㎡/h | 4300-11400㎡/h | 4600-12240㎡/h |
PTO TURNNING SPEED | 540r/min | 540r/min | 540r/min | 540r/min |
PTO SPLINE | 6x8x800 mm | 6x8x800 mm | 6x8x800 mm | 6x8x800 mm |
POWER REQUIRED | 25-35hp | 25-35hp | 25-35hp | 30-40hp |
MODEL | EF165 | EF175 | ||
DIMENSIONS(L*W*H) | 1750x687x722mm | 1850x687x722mm | ||
STRUCTURE WEIGHT | 235㎏ | 255㎏ | ||
CUTTING WIDTH | 1629mm | 1729mm | ||
WORKING EFFICIENCY | 4900-13000㎡/h | 5200-13800㎡/h | ||
PTO TURNNING SPEED | 540r/min | 540r/min | ||
PTO SPLINE | 6x8x800mm | 6x8x800mm | ||
POWER REQUIRED | 30-40hp | 30-40hp | ||
