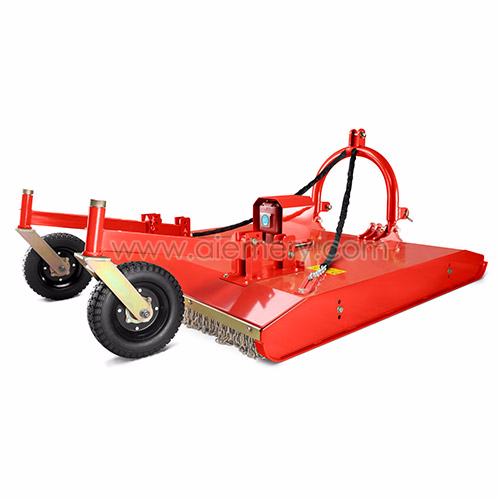

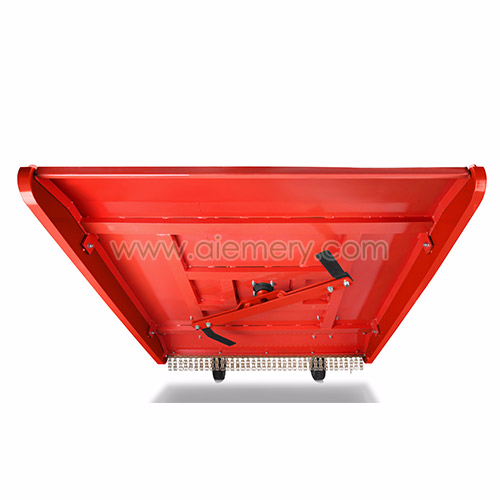

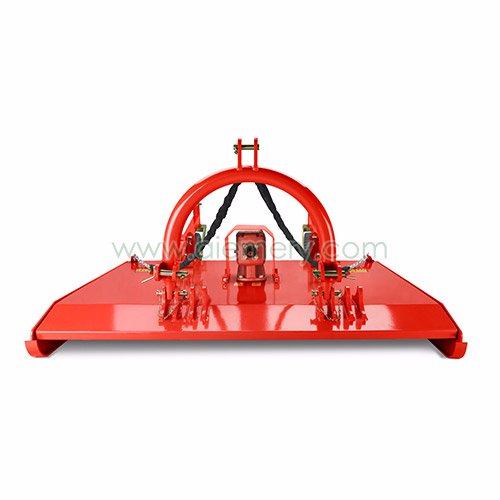

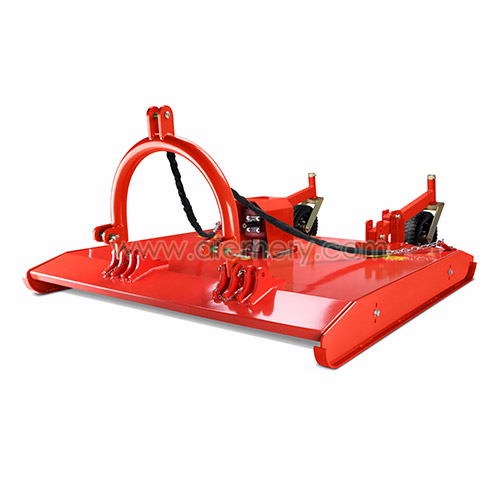

DS Slasher
Vertical-axle grass mower with rear discharge.
To fit tractors of 40 to 100 HP.
Ideal machine for fine cutting of grass in smooth gardens, parks, green areas, sport courts and orchards.
The DS mower meets the Australian new Safety Standards for Slashers.
Perfect around open grassy area-slashing a variety of grasses, small tress and light scrub clearing roadsides creating firebreaks.
Material Thickness:
- Upper deck : 4mm
- Sides: 4mm
- Draft arm mounting bars: 4mm
- Standard gearbox for DS150/180 is 50HP gearbox,60HP gearbox for your option.
Product Description
1. High welding processes and surface quality.
2. Low shock and noise.
3. CE standard.
4. Adjusting side or rear wheel to adjust cutting height
5. TM, SL and DS three types available
6. OEM accepted
7. Production capacity: 200 sets per month.
DS series
MODEL | DS3FT6 | DS4FT | DS4FT6 |
DIMENSIONS(L*W*H) | 1170x1070x980mm | 1320x1220x980mm | 1472x1372x980 |
STRUCTURE WEIGHT | 180kg | 240kg | 290kg |
CUTTING WIDTH | 1030mm | 1180mm | 1332mm |
WORKING EFFICIENCY | 3000-8200m2/h | 3500-9500m2/h | 4000-10000m2/h |
PTO TURNNING SPEED | 540r/min | 540r/min | 540r/min |
PTO SPLINE | 6x8x1000mm | 6x8x1000mm | 6x8x1000mm |
POWER REQUIRED | 20-30hp | 20-35hp | 20-35hp |
MODEL | DS5FT | DS6FT | DS7FT |
DIMENSIONS(L*W*H) | 1624x1524x980mm | 1929x1829x980mm | 2234x2134x980mm |
STRUCTURE WEIGHT | 350kg | 480kg | 610kg |
CUTTING WIDTH | 1484mm | 1789mm | 2094mm |
WORKING EFFICIENCY | 4400-12000m2/h | 5300-14000m2/h | 6200-16700m2/h |
PTO TURNNING SPEED | 540r/min | 540r/min | 540r/min |
PTO SPLINE | 6x8x1000mm | 6x8x1200mm | 6x8x1200mm |
POWER REQUIRED | 25-40hp | 40-70hp | 60-100hp |
