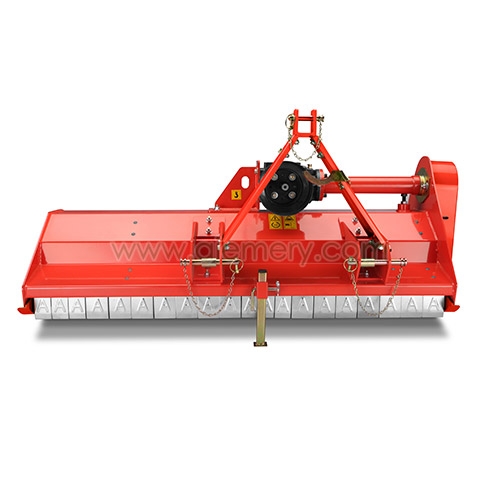

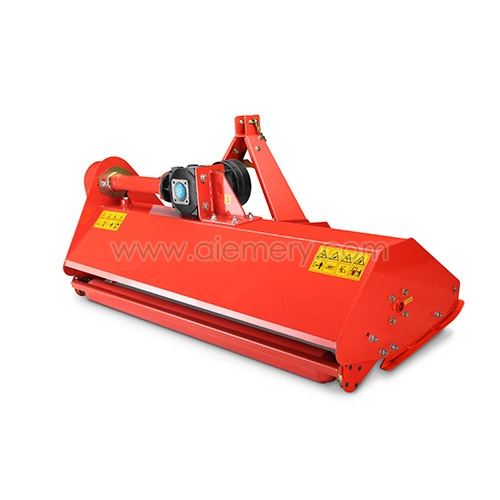

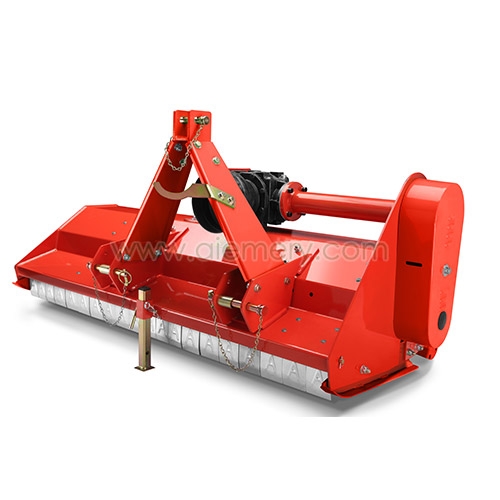

EFGC Flail Mower

EFGC Flail Mower

(2017 Reviews)

Compact rear mounted mulcher, for tractor from 18 to 50 HP.  It is suited to mulch grass, bushes and light pruning of φ 2 cm on parks, green areas, sport courts etc.

Heavy duty flail mower

Uses:

- Perfect   for use after storm when debris is scattered throughout areas usually   maintained with normal mowers
- Ideal for thick grass, sticks,   undergrowth and light vine mulching
- Vegetable & pasture   topping
- Roadside maintenance
- For gardening and grass land, even bush area use, capable of mowing branches with   diameter of 2cm.

Features:

- Cutting height controlled by   adjustable skids
- High strength mulching blades
- Belt driven
- Safety flaps to prevent debris   being thrown
- Extra strong and designed with   safety in mind
- Support leg for storage
- Solid hitch

The EFGC models are stronger and more powerful for maintaining more rugged landscape areas including heavy grasses, storm debris, sticks, vines and more around farms, properties, parklands and roadsides.

1. 50HP heavy duty Gearbox
2. Hammer / Universal blade   for grass
3. Cat. I universal    three-point hitch cardan shaft.

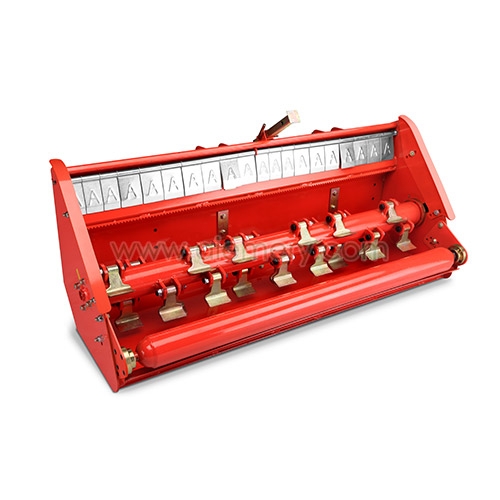

4. Hammer/Y blades


Main Specification on EFGC series Flail Mower:

MODEL

EFGC-105

EFGC-115

EFGC-125

EFGC-135

DIMENSIONS(L*W*H)

1165*790*850mm

1265*790*850mm

1365*790*850mm

1465*790*850mm

STRUCTURE WEIGHT

225Kg

238Kg

250Kg

265Kg

CUTTING WIDTH

1.02m

1.12m

1.22m

1.32m

WORKING EFFICIENCY

3300-9000m2/h

3700-9800m2/h

4000-10600m2/h

4300-11400m2/h

PTO TURNNING SPEED

540r/min

540r/min

540r/min

540r/min

PTO SPLINE

6*8*800mm

6*8*800mm

6*8*800mm

6*8*800mm

POWER REQUIRED

18-25HP

18-25HP

18-25HP

20-30HP


MODEL

EFGC-145

EFGC-155

EFGC-165

EFGC-175

DIMENSIONS(L*W*H)

1565*790*850mm

1665*790*850mm

1765*790*850mm

1865*790*850mm

STRUCTURE WEIGHT

280Kg

300Kg

315Kg

330Kg

CUTTING WIDTH

1.42m

1.52m

1.62m

1.72m

WORKING EFFICIENCY

4600-12400m2/h

4900-13000m2/h

5200-13800m2/h

5500-14400m2/h

PTO TURNNING SPEED

540r/min

540r/min

540r/min

540r/min

PTO SPLINE

6*8*800mm

6*8*800mm

6*8*800mm

6*8*800mm

POWER REQUIRED

30-35HP

30-40HP

35-45HP

40-50HP
