EFGCH  Flail Mower

EFGCH Flail Mower

(1969 Reviews)

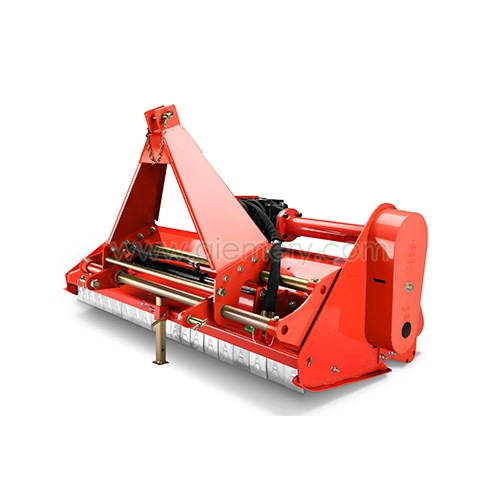

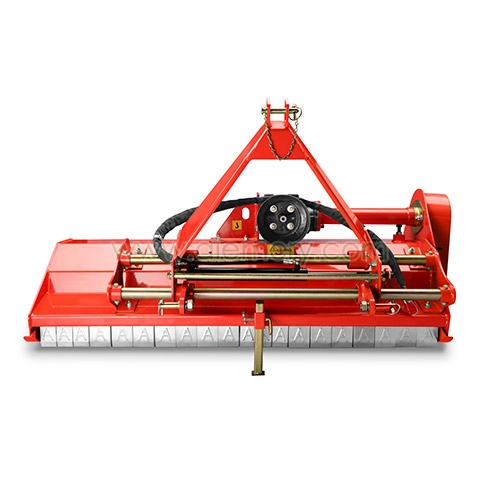

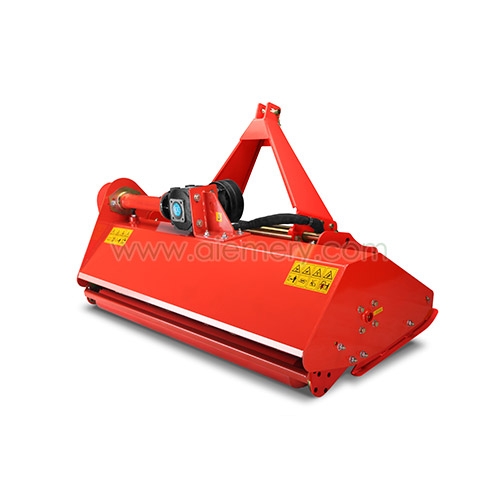

Compact rear mounted mulcher, for tractor from 18 to 50 HP. It is suited to mulch grass, bushes and light pruning of φ2 cm  on parks, green areas, sport courts etc.

Side-shift Heavy Duty Flail Mower (EFGC&EFGCH)

Uses:

- Perfect   for use after storm when debris is scattered throughout areas usually   maintained with normal mowers
- Ideal for thick grass, sticks,   undergrowth and light vine mulching
- Vegetable & pasture   topping
- Roadside maintenance
- For gardening and grass land,   even bush area use, capable of mowing branches with diameter of 2cm.

Features:

- Cutting height controlled by   adjustable skids
- High strength mulching blades
- Belt driven
- Safety flaps to prevent debris   being thrown
- Extra strong and designed with   safety in mind
- Support leg for storage
- Solid hitch
- Side-shift

The EFGCH series are   stronger and more powerful for maintaining more rugged landscape areas   including heavy grasses, storm debris, sticks, vines and more around farms,   properties, parklands and roadsides.

1. 50HP heavy duty Gearbox
2. Hammer / Universal blade   for grass
3. Cat. I universal    three-point hitch cardan shaft.
4. Hammer/Y blades


MODEL

EFGCH-105

EFGCH-115

EFGCH-125

EFGCH-135

DIMENSIONS(L*W*H)

1165*925*1035mm

1265*925*1035mm

1365*925*1035mm

1465*925*1035mm

STRUCTURE WEIGHT

260Kg

275Kg

287Kg

302Kg

CUTTING WIDTH

1.02m

1.12m

1.22m

1.32m

WORKING EFFICIENCY

3300-9000m2/h

3700-9800m2/h

4000-10600m2/h

4300-11400m2/h

PTO TURNNING SPEED

540r/min

540r/min

540r/min

540r/min

PTO SPLINE

6*8*900mm

6*8*900mm

6*8*900mm

6*8*900mm

POWER REQUIRED

18-25HP

18-25HP

18-25HP

20-30HP


MODEL

EFGCH-145

EFGCH-155

EFGCH-165

EFGCH-175

DIMENSIONS(L*W*H)

1565*925*1035mm

1665*925*1035mm

1765*925*1035mm

1865*925*1035mm

STRUCTURE WEIGHT

327Kg

342Kg

357Kg

369Kg

CUTTING WIDTH

1.42m

1.52m

1.62m

1.72m

WORKING EFFICIENCY

4600-12400m2/h

4900-13000m2/h

5200-13800m2/h

5500-14400m2/h

PTO TURNNING SPEED

540r/min

540r/min

540r/min

540r/min

PTO SPLINE

6*8*900mm

6*8*900mm

6*8*900mm

6*8*900mm

POWER REQUIRED

30-35HP

30-40HP

35-45HP

40-50HP
