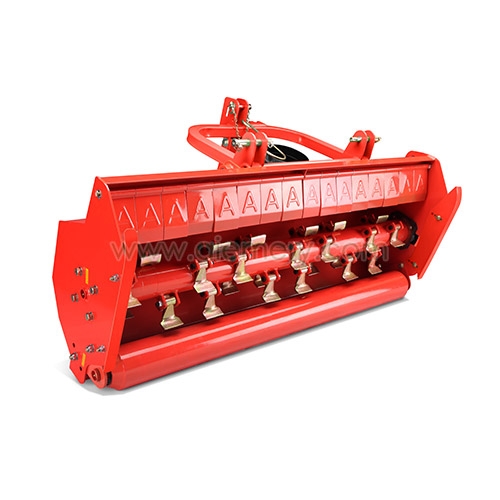

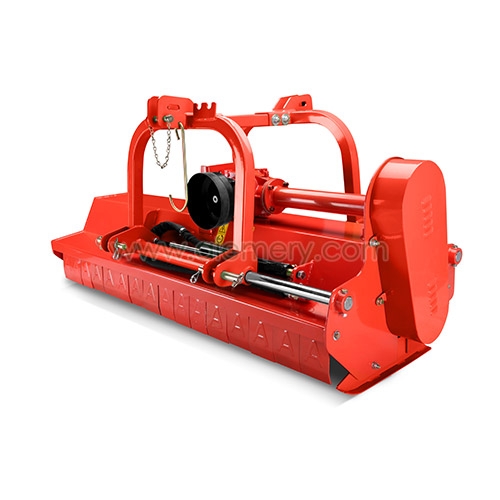

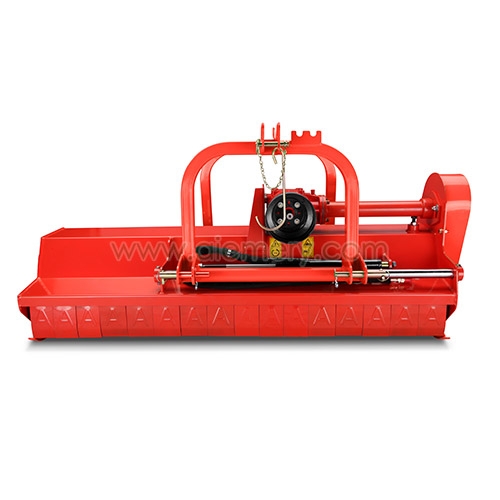

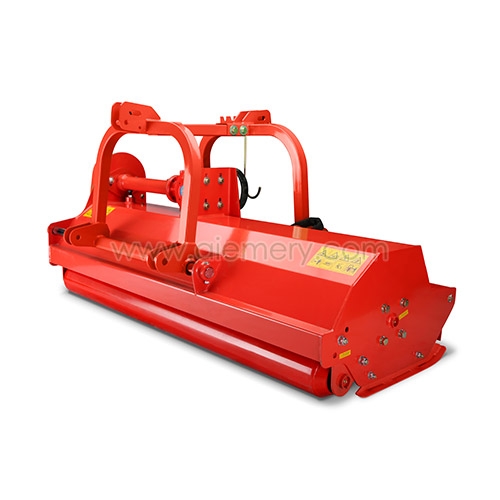

AG Flail Mower

AG Flail Mower

(1076 Reviews)

Mulcher to fit front tractors' linkage or reverse-drive tractors.
From 35 to 95HP.
Suited to mulch grass, bushed and prunning up to φ4-5cm.
On vineyards and orchards.


Front&rear flail mower AG

USES:

- The AG Series Flail Mowers   are a super heavy duty flail mower designed for large      areas, roadside verges, orchards and general farm areas;
- Duals-mount for using   at front or rear of tractors;
- Hydraulic side shift;
- Perfect for   maintaining more rugged landscape areas including heavy   grasses,storm    debris,sticks,vines and more areas around   farms,properties,parklands and roadsides.

FEATURES:

- Dual mountable because   of double head gearbox;
- Suited to tractors   with front or rear PTO and hydraulic remotes;
- Hydraulic side shift   allows the AG flail mowers to cut close to farm boundaries,around obstructions and   trees as well as roadsides;
- AG flail mowers are   fitted with a high power 50hp gear box;
- Cutting height   controlled by adjustable skids;
- Safety flaps;
- Extra strong and   designed with safety in mind;
- Support leg for   storage;
- Solid hitch;

The AG Series Flail Mowers are   a super heavy duty flail mower designed for large areas, roadside verges,   orchards.

1. Fitted with a high power   50hp gear box
2. Cutting height controlled   by adjustable skids;
3. Front & Rear   mounting
4. Hydraulic side shift 50cm
5. Hammer blade   Standard Hammer Blade


Main Specification on AG series Flail Mower:

MODEL

AG-140

AG-175

AG-200

AG-220

DIMENSIONS(L*W*H)

1540*985*1005mm

1840*985*1005mm

2140*985*1005mm

2340*985*1005mm

STRUCTURE WEIGHT

320Kg

370Kg

410Kg

460Kg

CUTTING WIDTH

1.38m

1.68m

1.98m

2.18m

WORKING EFFICIENCY

4600-12400m2/h

5400-14000m2/h

6600-18000m2/h

7000-20000m2/h

PTO TURNNING SPEED

540r/min

540r/min

540r/min

540r/min

PTO SPLINE

6*8*900mm

6*8*900mm

6*8*900mm

6*8*900mm

POWER REQUIRED

35-45HP

40-50HP

45-60HP

55-85HP
