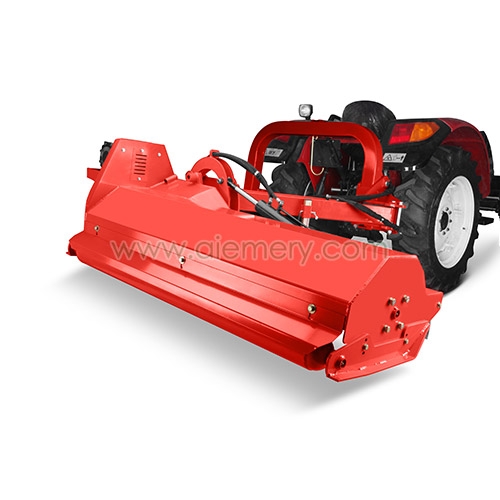

AGH Flail Mower

AGH Flail Mower

(734 Reviews)

Idea for cleaning green areas, gardens, slopes, ditches, bank of watercourses, road side banks.
Suited for tractors from 40 to 130HP.


Uses:

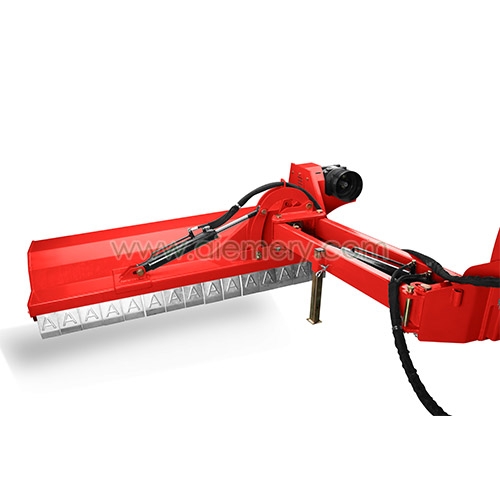

- The Verge Flail Mowers   are flail mowers with hydraulic am for cleaning larger, wider areas, roadsides   verges, orchards and various inclining and declining land surfaces;
- Specially designed for   universal use the head of the mower can be operate in line with the tractor or   offset for verge maintenance and field boundaries.

Feature:
- The Verge Flail Mowers   are suitable for roadside verge, tree trimming and general      mulching;
- Hydraulic side   adjustment;
- Hydraulic inclining   adjustment;
- Rear roller wheel;
- High power 50hp   gearbox;
- Self leveling;
- High strength mulching   blades;
- Safety flaps;
- Extra strong and   designed with safety in mind;
- Support legs for   storage;
- Solid hitch.

The heavy verge Flail Mowers   are flail mowers with hydraulic arm for clearing larger, wider areas,   roadsides verges, orchards and vineyards.

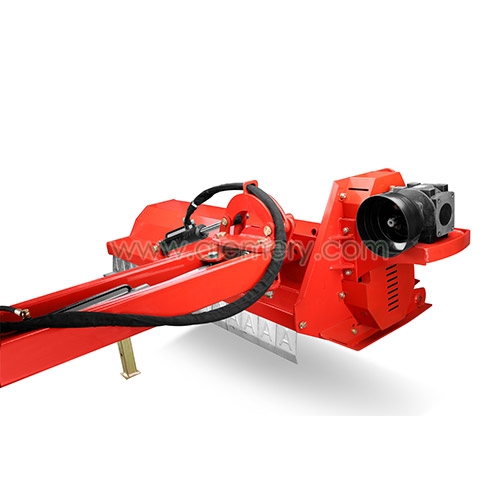

1. Fitted with a high power   50hp gear box;
2.Cutting height controlled by   adjustable skids;
3.High strength mulching   blades

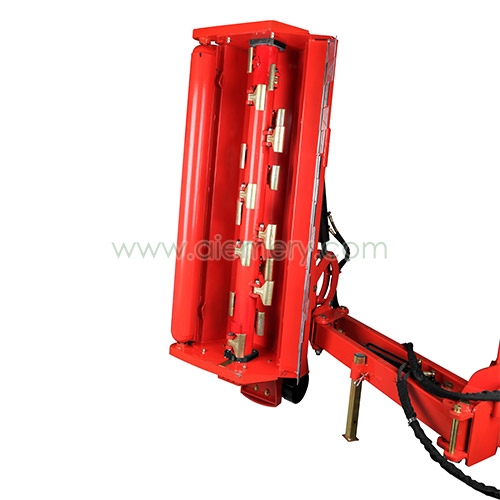

4. Hammer blade Standard Hammer Blade
5. Optional part: Hydraulic   valve

Main Specification on AGH Flail Mower:

MODEL

AGH-140

AGH-160

DIMENSIONS(L×W×H)

1800×1850×1020mm

1820×2050×1020mm

STRUCTURE   WEIGHT

564Kg

590Kg

CUTTING   WIDTH

1.4m

1.6m

WORKING   EFFICIENCY

6000-16000m2/h

6000-16000m2/h

PTO   TURNNING SPEED

540r/min

540r/min

PTO   SPLINE

6×8×1600mm

6×8×1600mm

POWER   REQUIRED

40-85HP

50-90HP

MODEL

AGH-180

AGH-200

DIMENSIONS(L×W×H)

1800×2250×1020mm

1820×2450×1020mm

STRUCTURE   WEIGHT

618Kg

648Kg

CUTTING   WIDTH

1.8m

2.0m

WORKING   EFFICIENCY

6000-16000m2/h

6000-16000m2/h

PTO   TURNNING SPEED

540r/min

540r/min

PTO   SPLINE

6×8×1600mm

6×8×1600mm

POWER   REQUIRED

60-90HP

65-100HP
