Features:
- Design for 12-25HP compact tractors
- Tilling couldn’t be easier for the garden you have or the new ground you need to break up and plant
- Cat-I 3-pint hitch
- Right hand off-set to cover that tire track
- Adjustable tilling depth
- Heavy duty side case chain drive

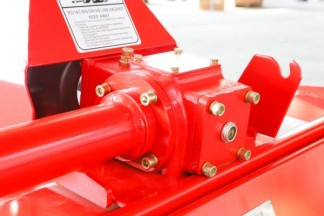

- 35HP rated gearbox
- 1/4" Double walled housing
- 14" blade swing
MODEL | TL-85 | TL-95 | TL-105 |
DIMENSIONS(L*W*H) | 950*800*750mm | 1150*800*750mm | 1250*800*750mm |
STRUCTURE WEIGHT | 155Kg | 170Kg | 185Kg |
TILLING WIDTH | 0.8m | 0.9m | 1.0m |
TILLING DEPTH | 90mm | 90mm | 90mm |
WORKING EFFICIENCY | 1300-2100m2/h | 1500-2200m2/h | 1700-2300m2/h |
PTO TURNNING SPEED | 540r/min | 540r/min | 540r/min |
PTO SPLINE | 6*8*700mm | 6*8*700mm | 6*8*700mm |
POWER REQUIRED | 12-20HP | 12-20HP | 15-22HP |
| |||
MODEL | TL-115 | TL-125 | TL-135 |
DIMENSIONS(L*W*H) | 1350*800*750mm | 1450*800*750mm | 1550*800*750mm |
STRUCTURE WEIGHT | 200Kg | 240Kg | 240Kg |
TILLING WIDTH | 1.1m | 1.2m | 1.3m |
TILLING DEPTH | 90mm | 90mm | 90mm |
WORKING EFFICIENCY | 1900-2400m2/h | 2100-2500m2/h | 2300-2600m2/h |
PTO TURNNING SPEED | 540r/min | 540r/min | 540r/min |
PTO SPLINE | 6*8*700mm | 6*8*700mm | 6*8*700mm |
POWER REQUIRED | 15-22HP | 18-22HP | 18-22HP |
