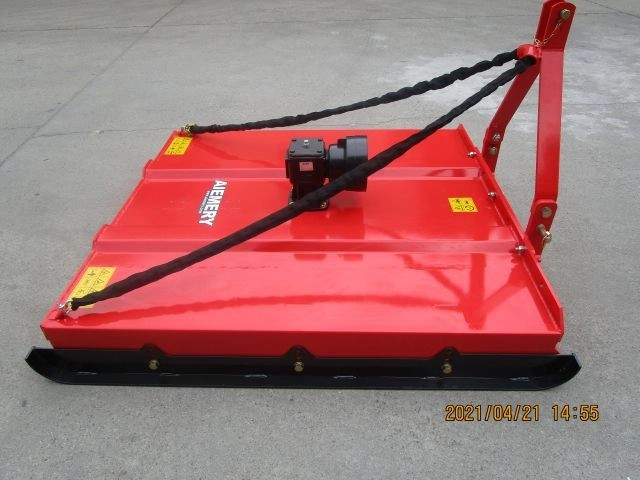

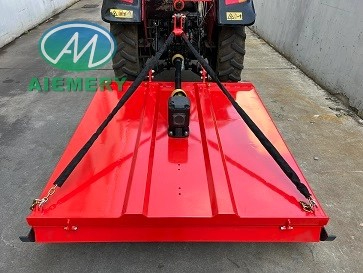

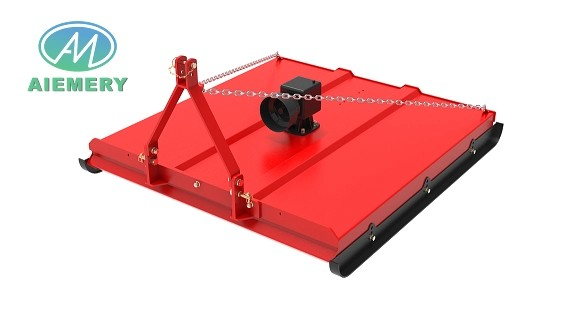

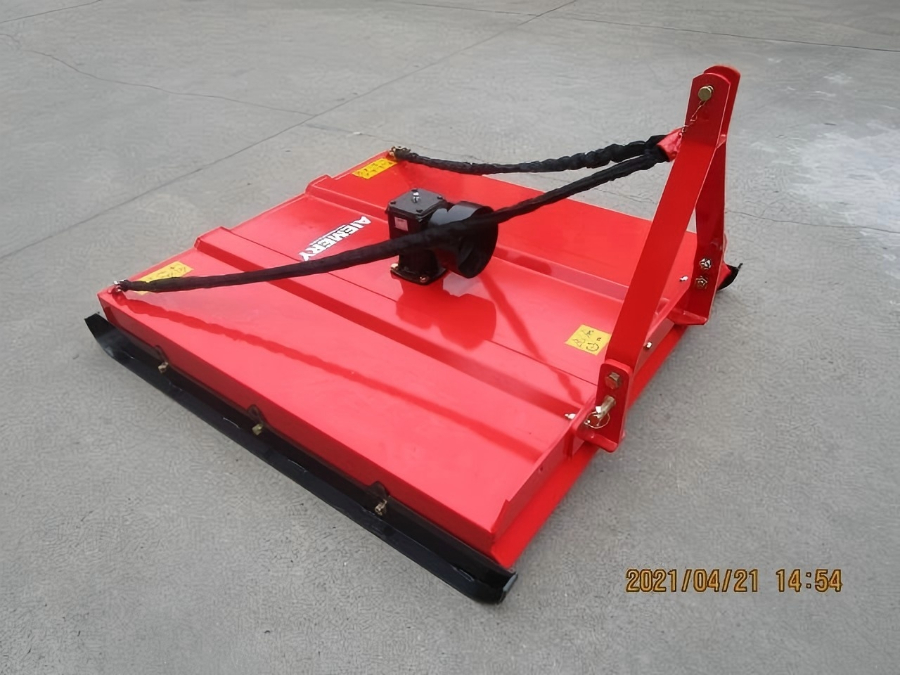

Topping Mower TMB
Topper Mower TM-B model is ideal for compact tractor grass cutting, Aiemery Agri-machinery is a special Topper mower manufacturer and factory in China.
E-mail: johnson@aiemery.com
Specification sheet for Aiemery Topper Mower TM-B
MODEL | TM-B110 | TM-B140 | TM-B160 | TM-B170 |
Dimensions (mm) | 1328×1214×959 | 1528×1514×959 | 1828×1714×959 | 1928×1814×959 |
Weight (kg) | 175 | 205 | 215 | 225 |
Cutting Width | 106cm | 136cm | 156cm | 166cm |
Cutting height | 20-70mm | 20-70mm | 20-70mm | 20-70mm |
No. of blades | 2 | 2 | 2 | 2 |
PTO speed (rpm) | 540 | 540 | 540 | 540 |
PTO shaft (mm) | T4-800 | T4-800 | T4-1000 | T4-1000 |
Matching power | 18-25hp | 20-35hp | 25-40hp | 30-50hp |
Packing size (cm) | 123x133x53 | 154x163x53 | 174x183x53 | 184x193x53 |
