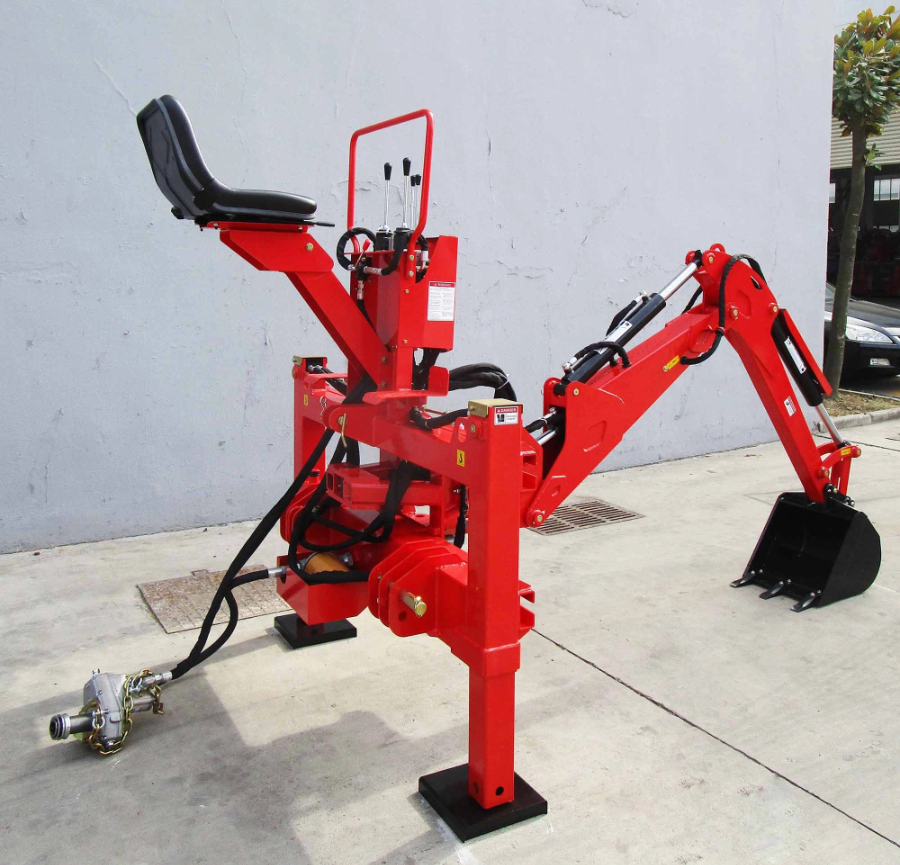

Specifications of backhoe

Specifications of backhoe

(1066 Reviews)

Uses:

- To clean up constructions   areas by moving large piles of dirt from one place to another regardless of   terrain
- To dig the ground
- To smooth out uneven terrain   with the use of the digging bucket
- To create trenches
- To carve ditches or dikes
- To remove deep-seated roots   of trees

Features:

- Suits all types of tractors   with Cat 1 or 2, 3-point linkage kit;

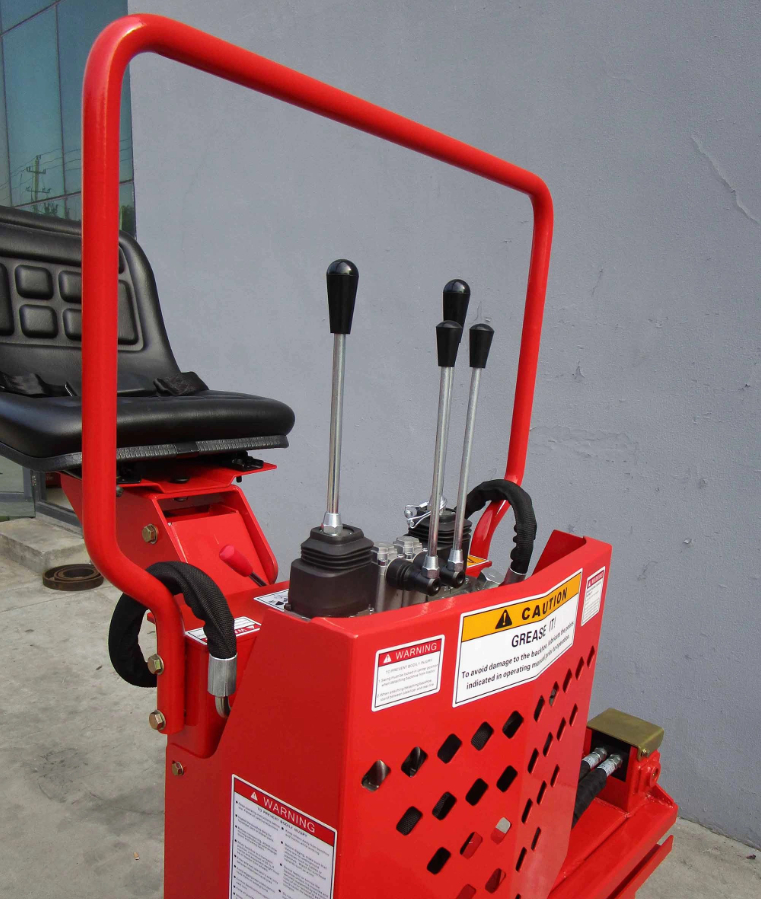

- Joystick style control   console;
- Tough and reliable hydraulic   arm;
- Individually controlled   support legs;
- Boom lockout pins for   transport



Model

BH6600

BH7600

 BH8600

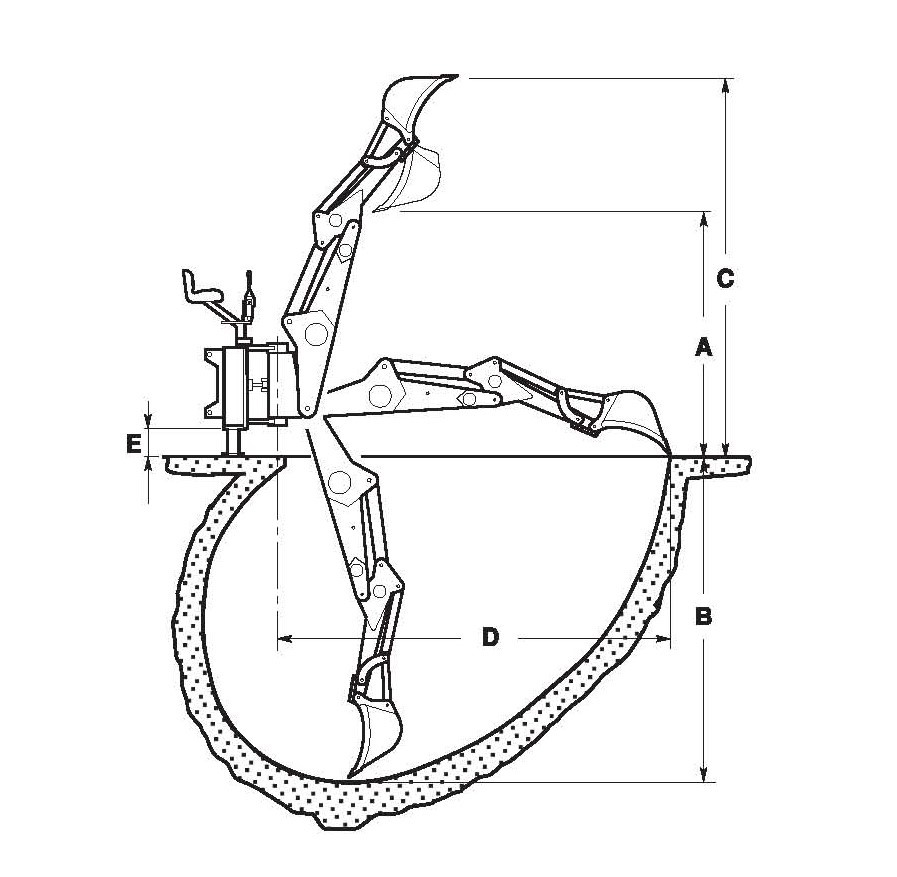

Maximum Digging Depth

2133mm

2438mm

2745mm

 Digging Depth (two foot flat bottom)

1980mm

2286mm

2590mm

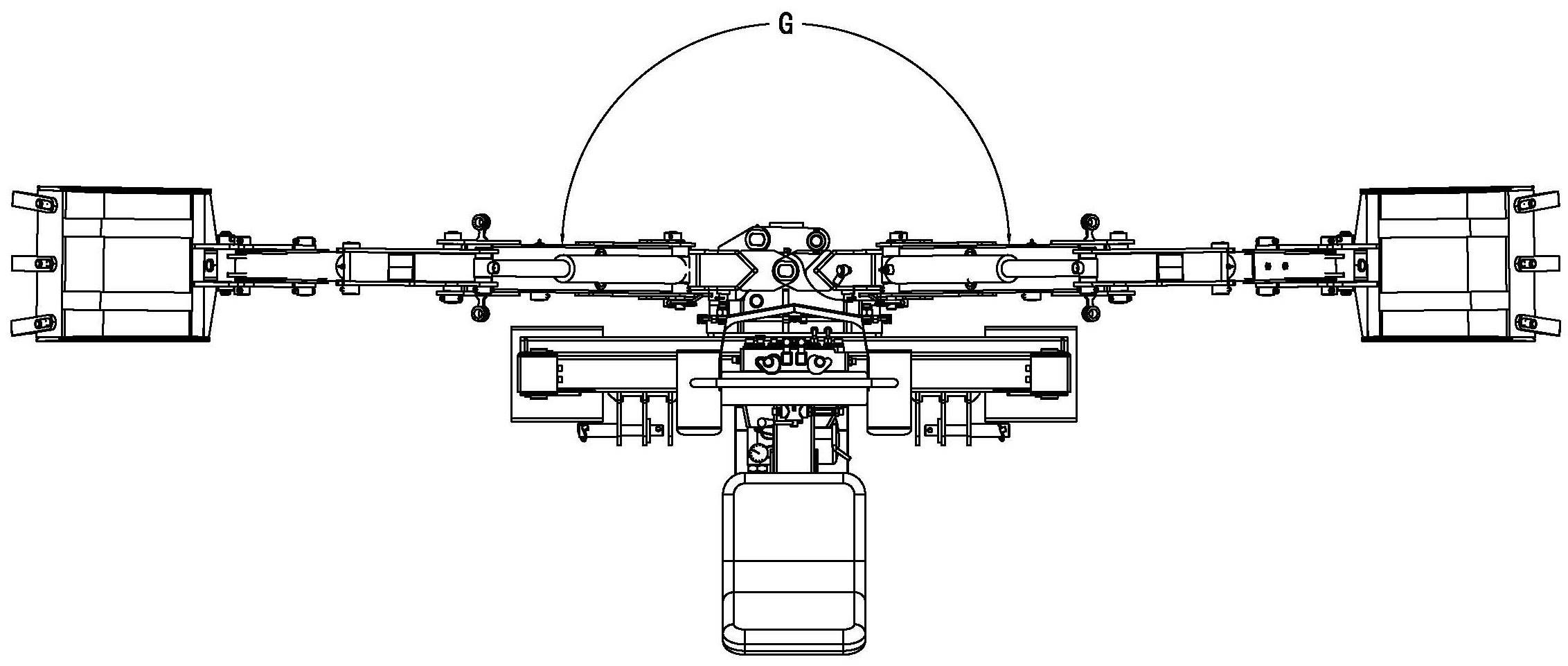

 Swing Arc

180 °

180 °

180

 Loading Height (bucket at 60 ° )

1524mm

1778mm

2032mm

 Reach from Center Line of Swing Pivot

2590mm

2895mm

3200mm

 Transport Height (maximum)

1498mm

1752mm

2032mm

 Bucket Rotation

180 °

180 °

180

 Loading Reach (bucket at 60 ° )

965mm

1092mm

1220mm

 Transport Overhang

1042mm

1066mm

1092mm

 Undercut

712mm

762mm

812mm

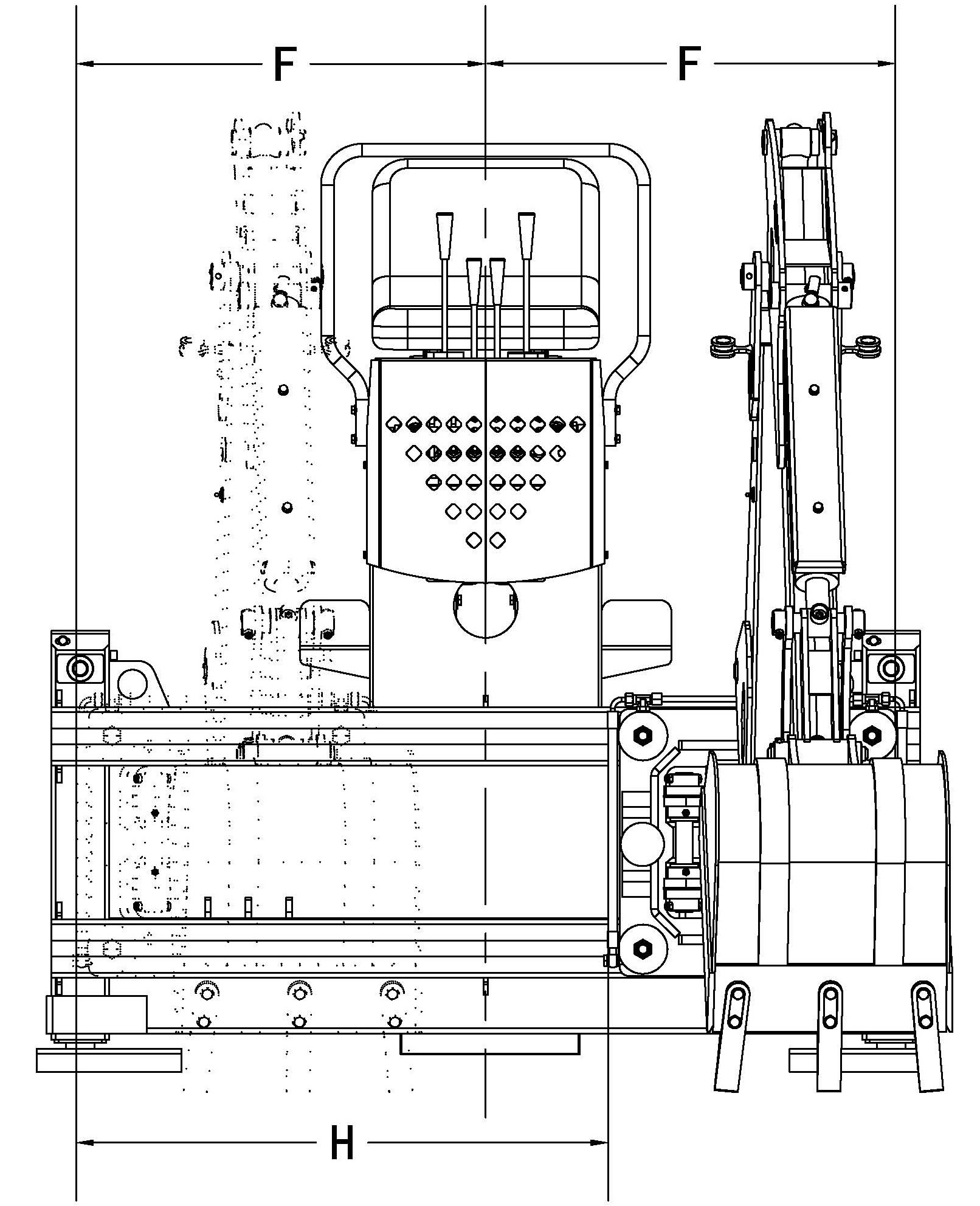

Stabilizer Spread, down position

1980mm

2260mm

2565mm

Stabilizer Spread, up position

1194mm

1550mm

1828mm

Bucket Cylinder Digging Force

1112kgs

1288kgs

1360kgs

Dipper stick Cylinder Digging Force

566kgs

910kgs

1135kgs

Shipping Weight (less bucket)

296kgs

356kgs

498kgs

Hydraulic Volume 3'4" Requirements

3 to 4 GPM

4 to 5 GPM

5  to    6 GPM

Hydraulic Pressure Requirements

2000 psi

2000 psi

2000 psi

Recommended Tractor HP

20 - 35 HP

25 - 45 HP

35 - 65 HP
