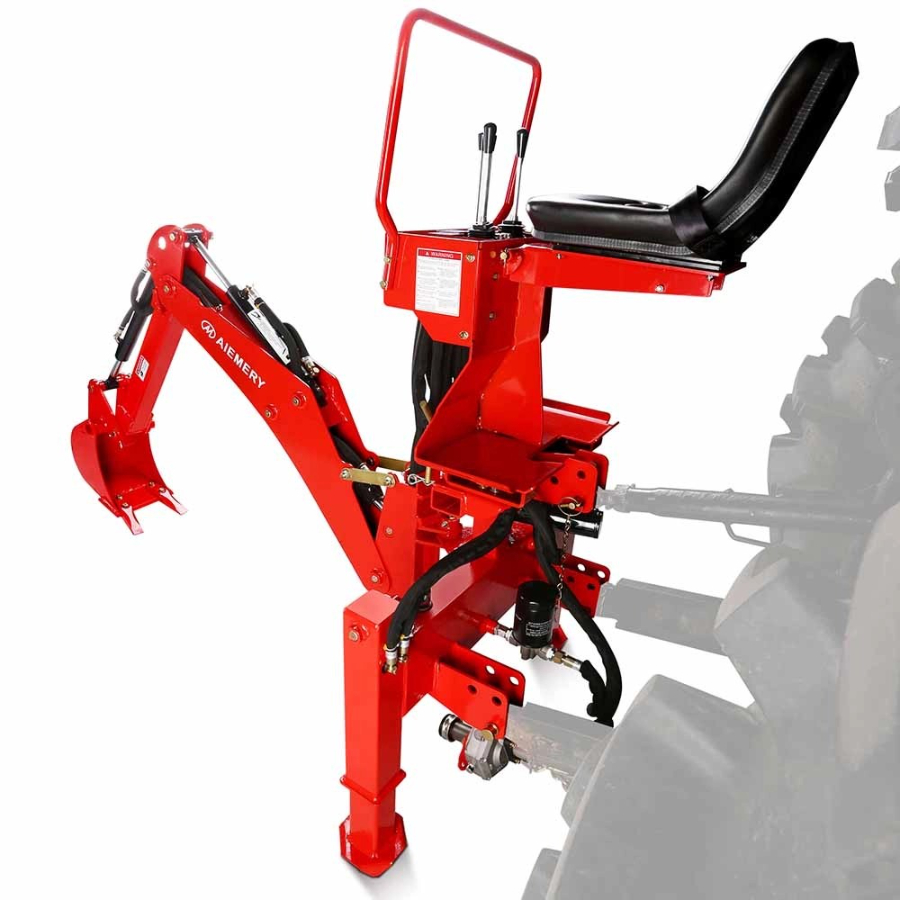

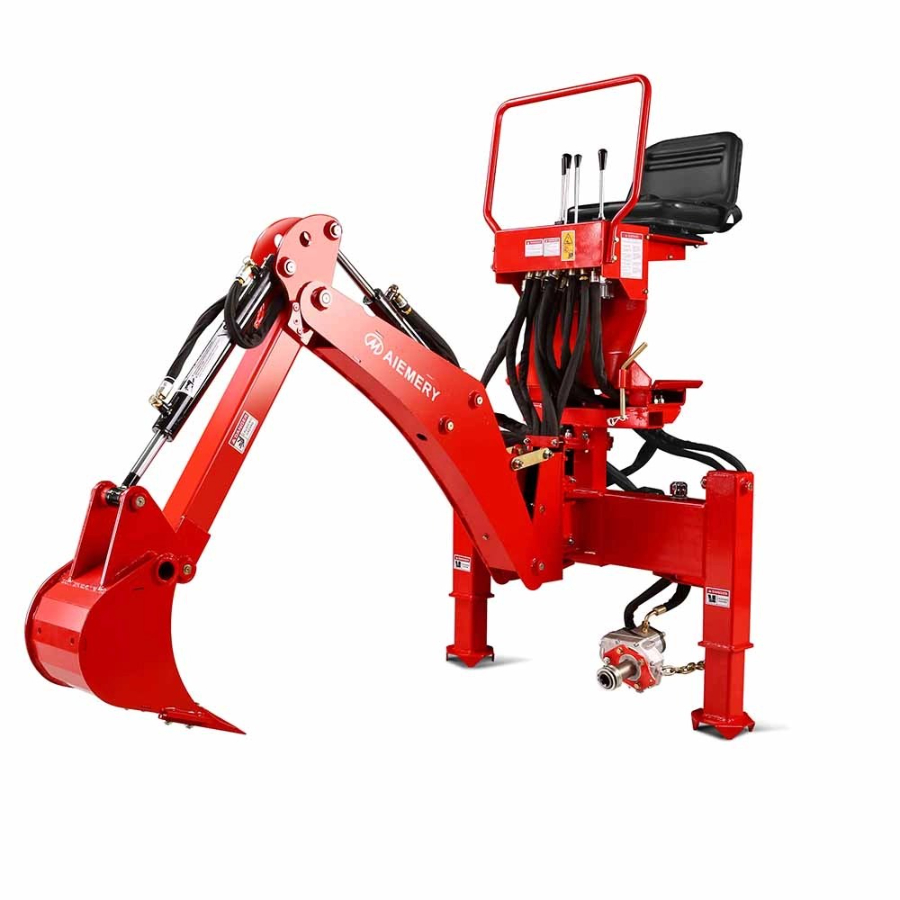

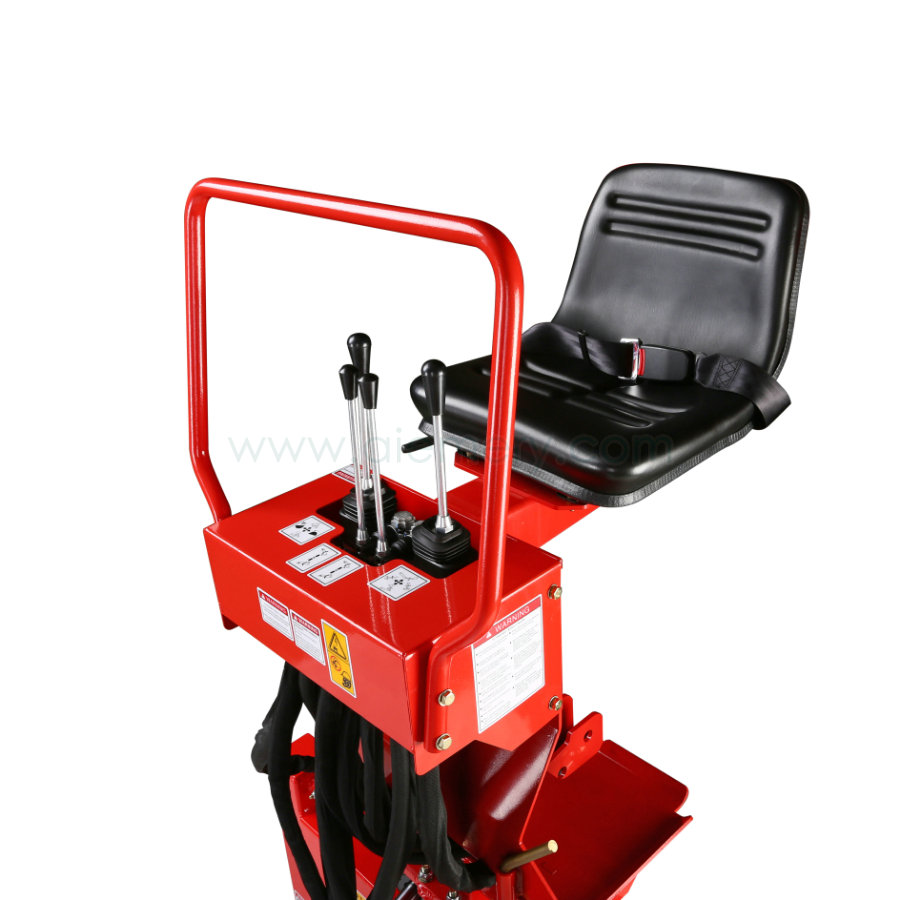

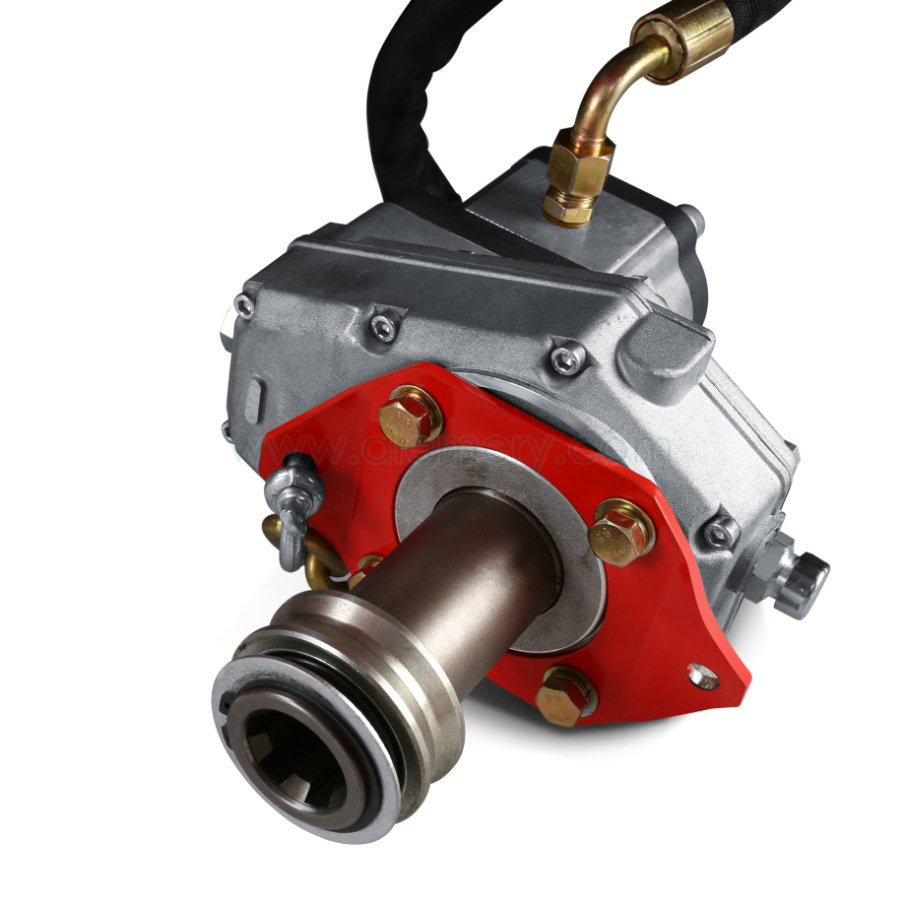

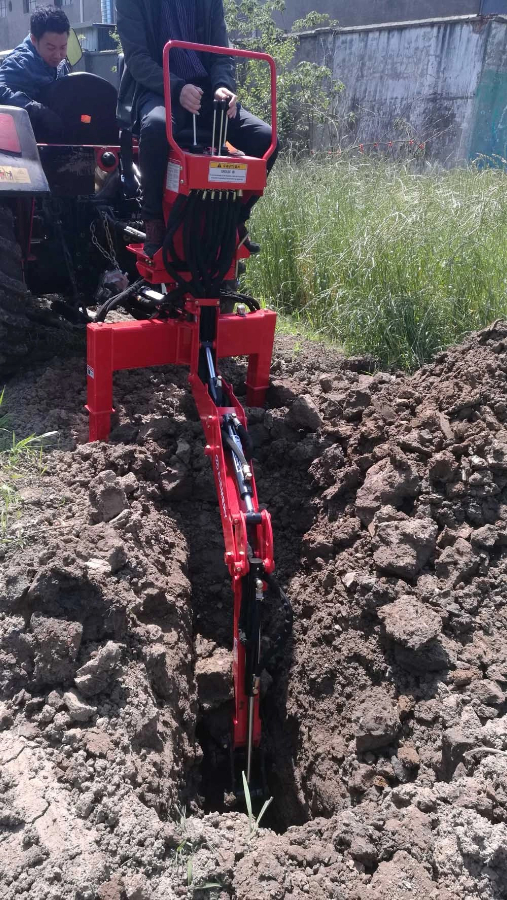

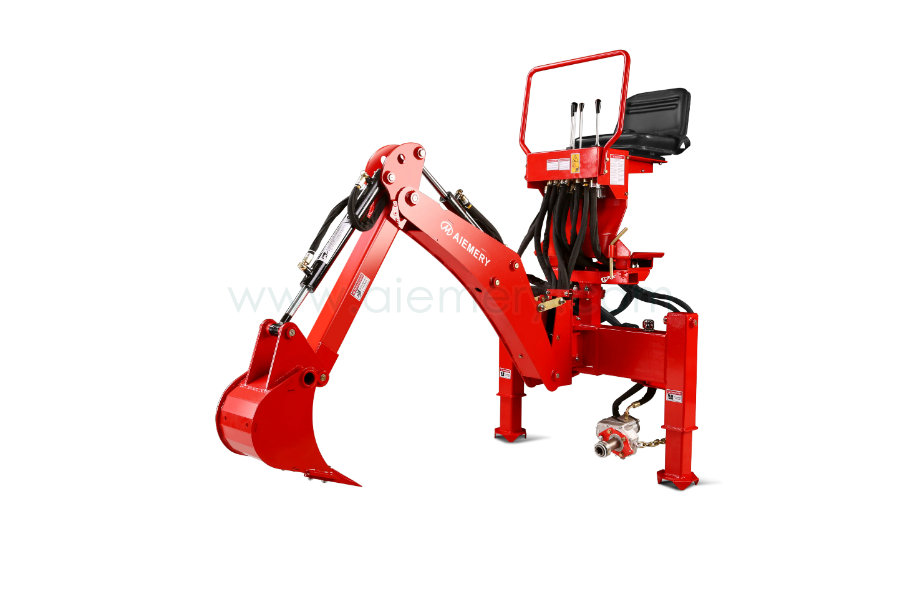

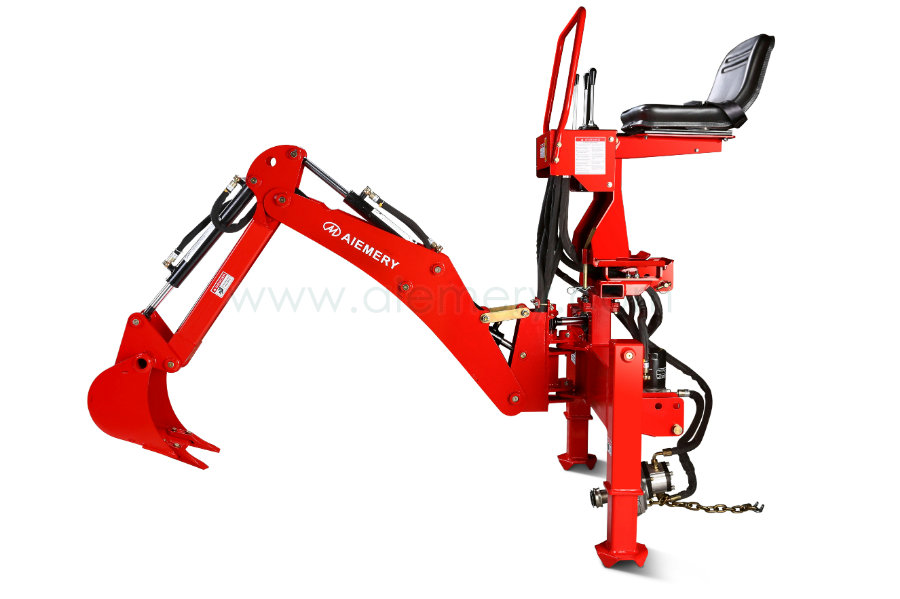

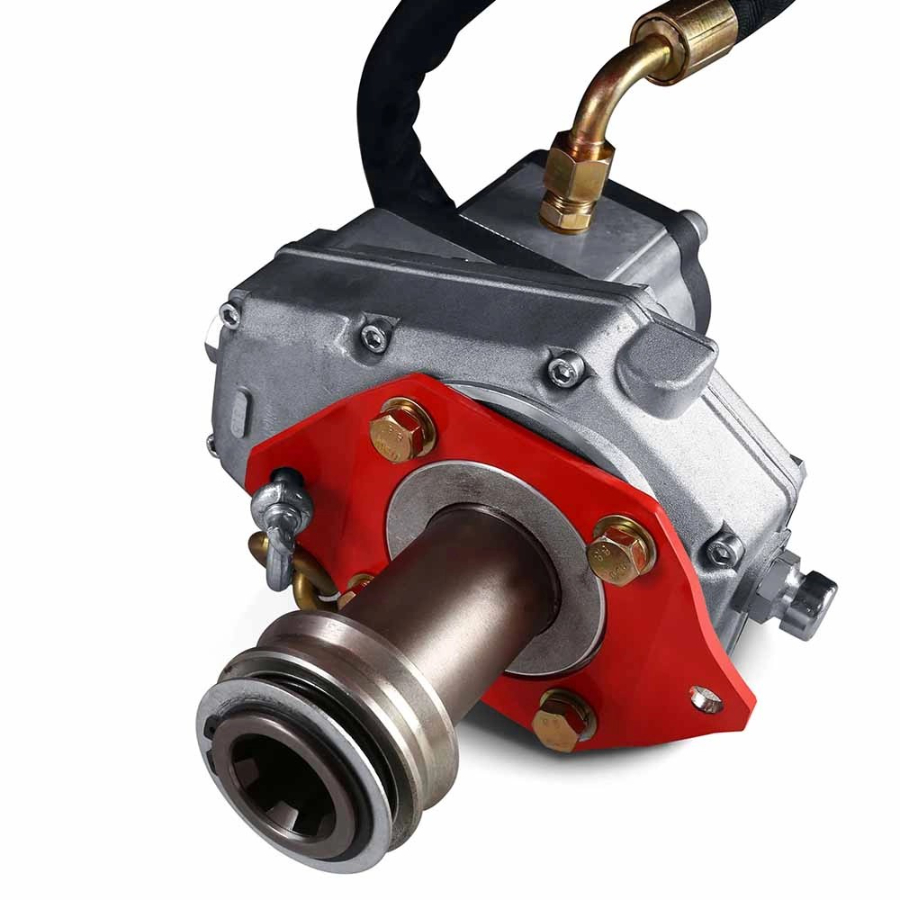

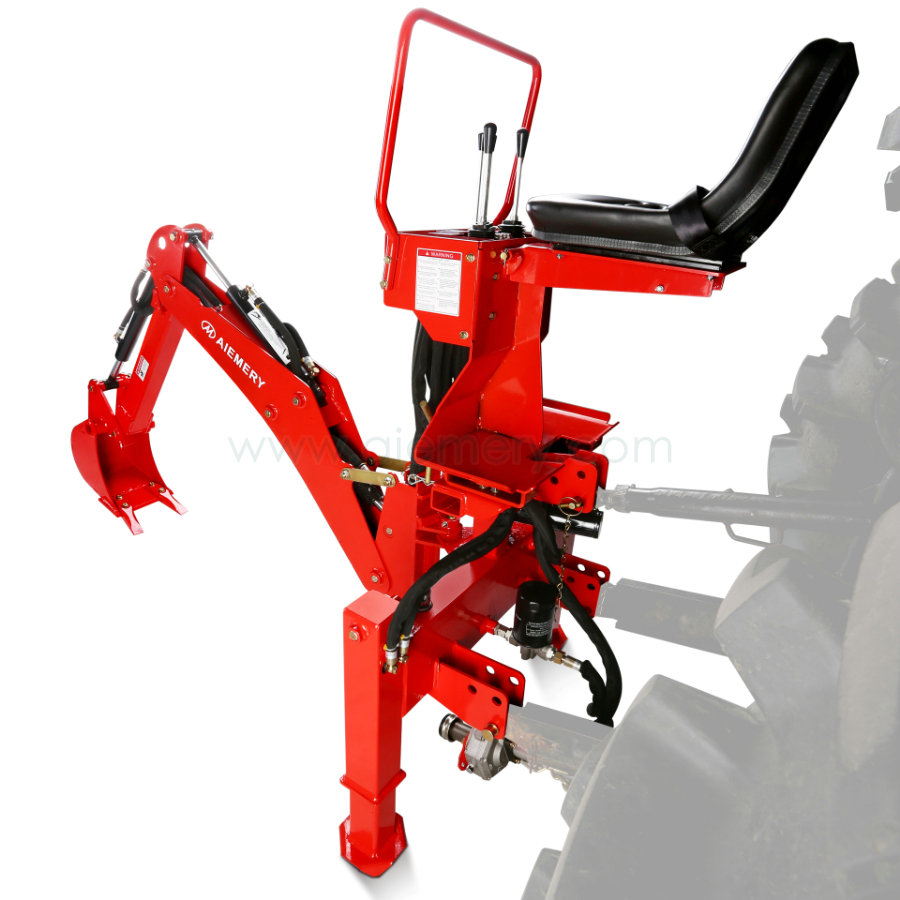

BK145 mini backhoe is designed for universal small to medium tractors from 10 to 40hp category Ⅰ/Ⅱ linkage, The BK145 mini excavators have their own hydraulic tank and pump. It is easy to operate and controlled by 2 joysticks from its independent control station. The weight is only about 250kg.

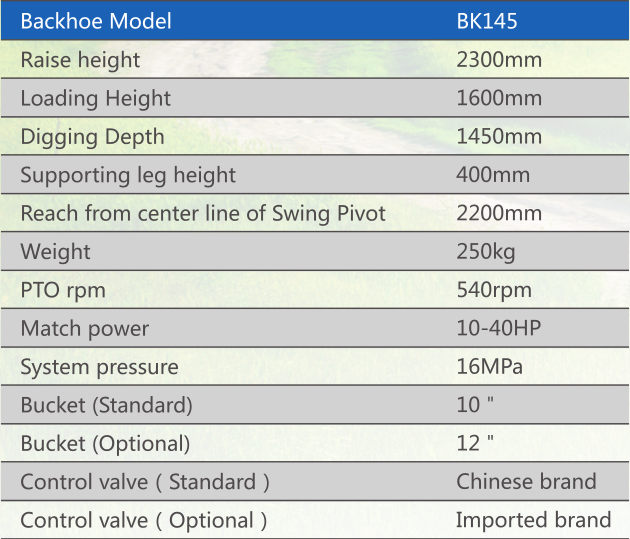

Backhoe Model | BK145 | |

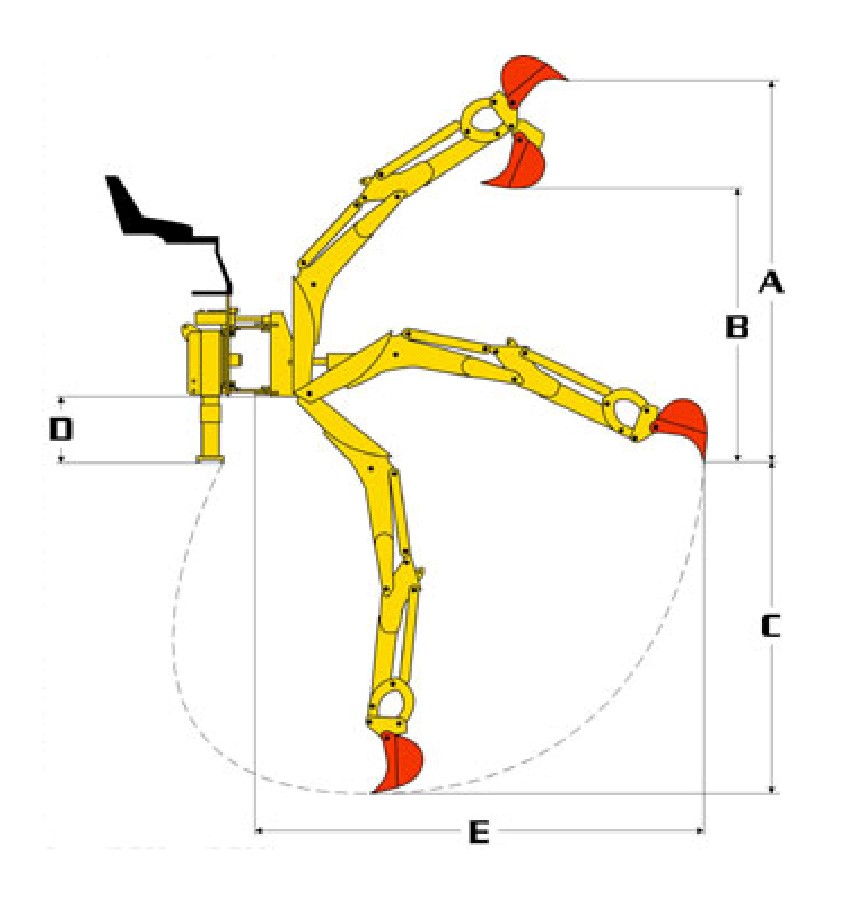

A | Raise height | 2300mm |
B | Loading Height | 1600mm |
C | Digging Depth | 1450mm |
D | Support foot Height | 400mm |
E | Reach from center line of Swing Pivot | 2200mm |
Weight | 250kg | |
PTO Speed | 540rpm | |
Horsepower | 10-40HP | |
Hydraulic pressure | 16MPa | |
Bucket (standard) | 10” | |
Bucket (Option) | 12” | |
Valve (Standard) | CN valve | |
Valve (Option) | Italy valve |
