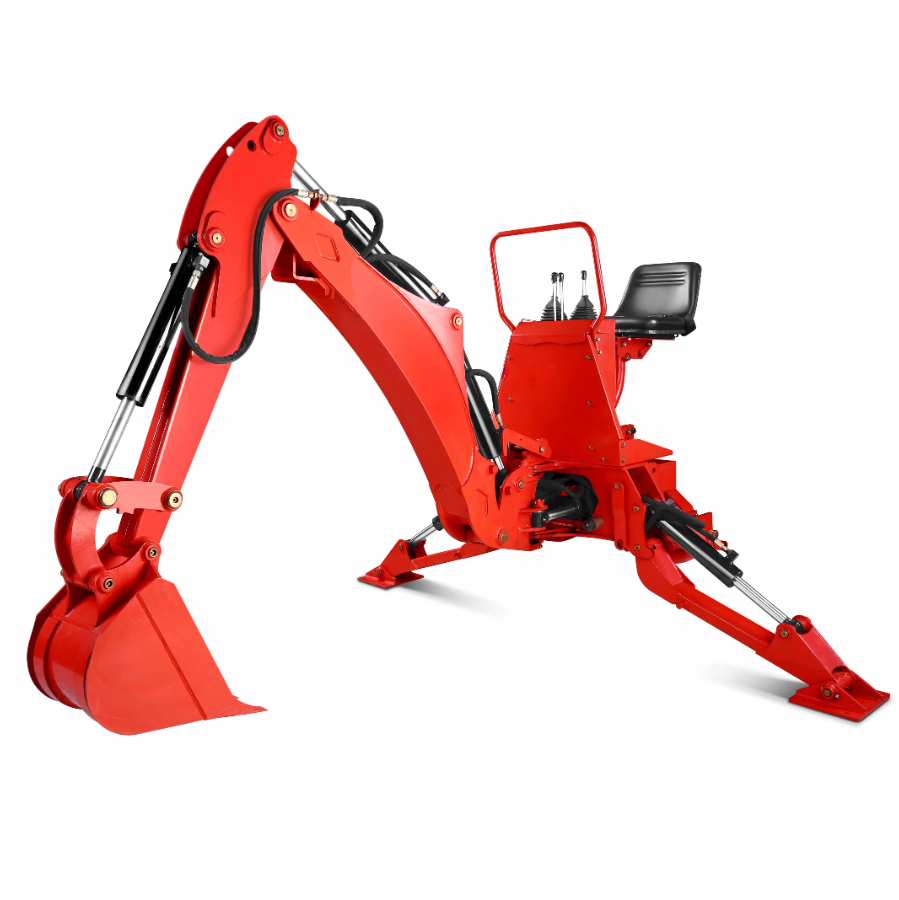

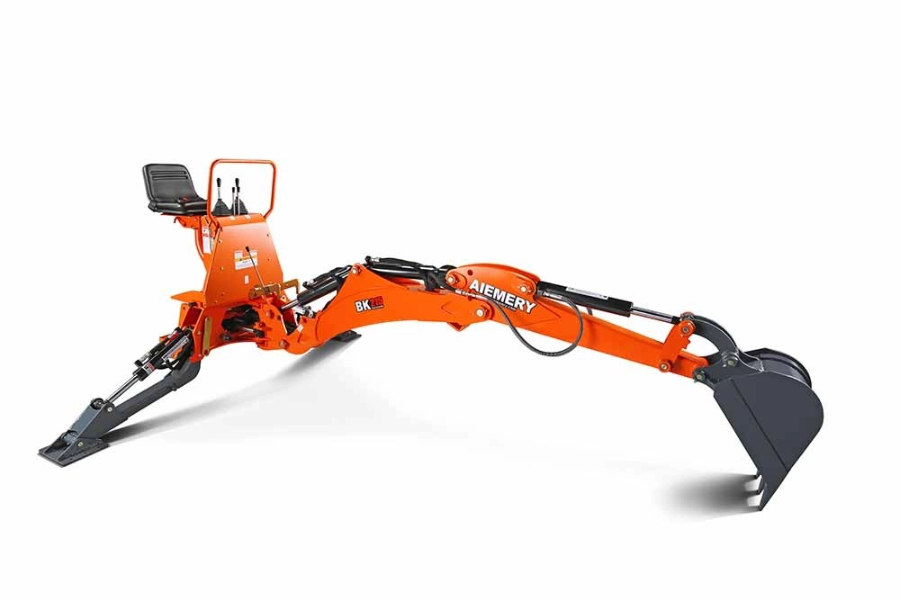

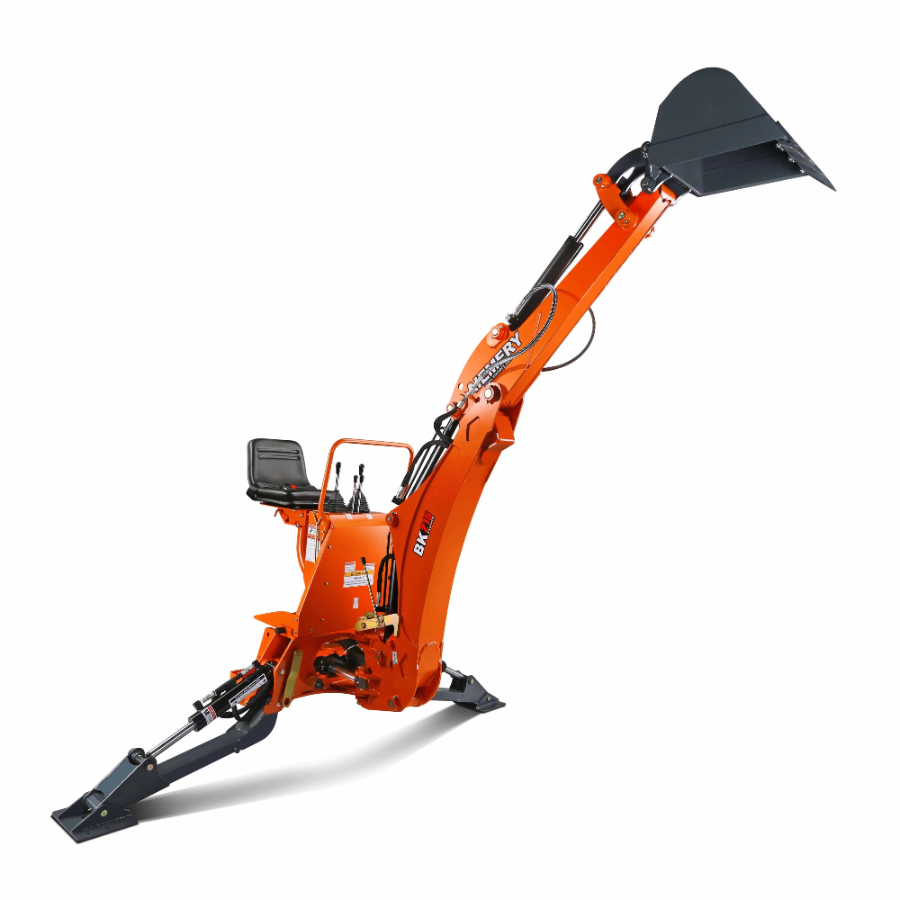

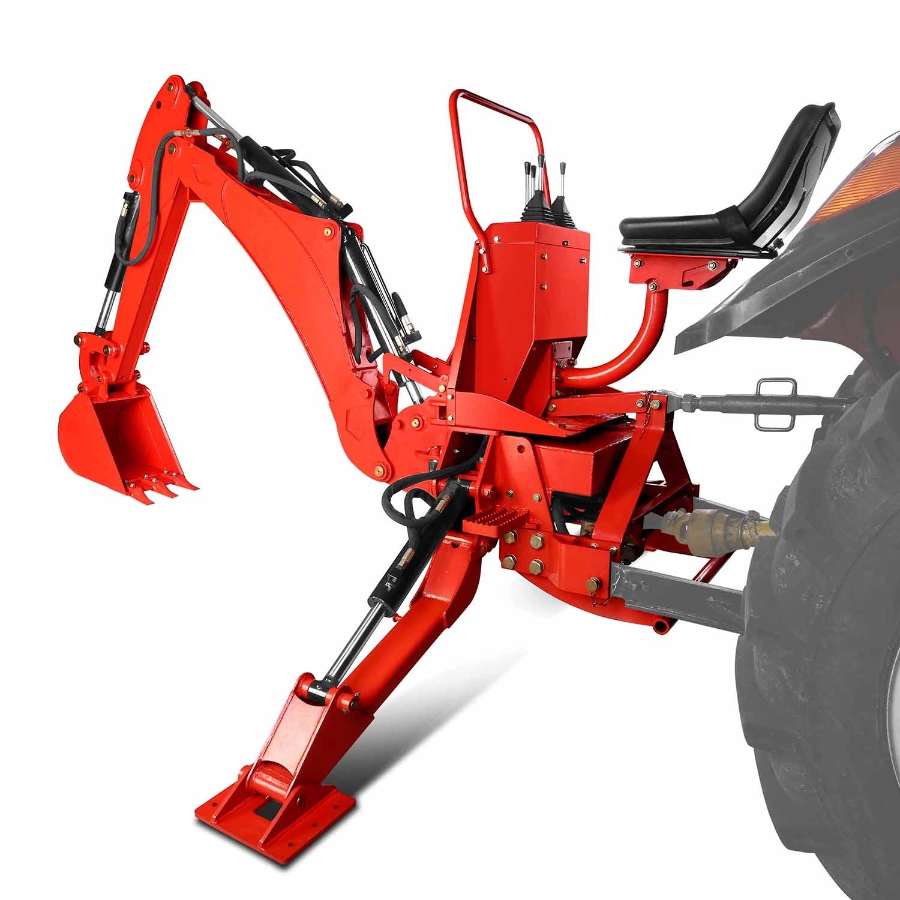

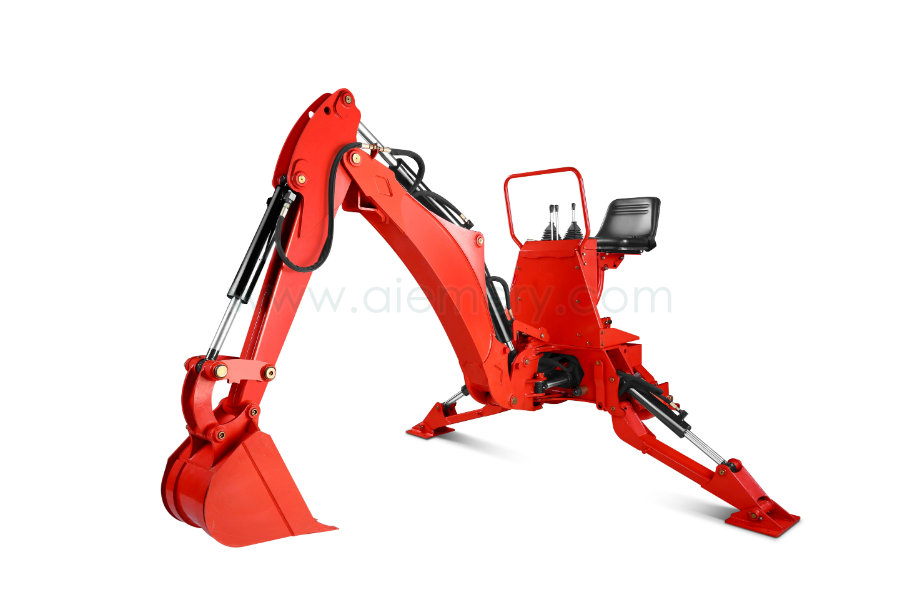

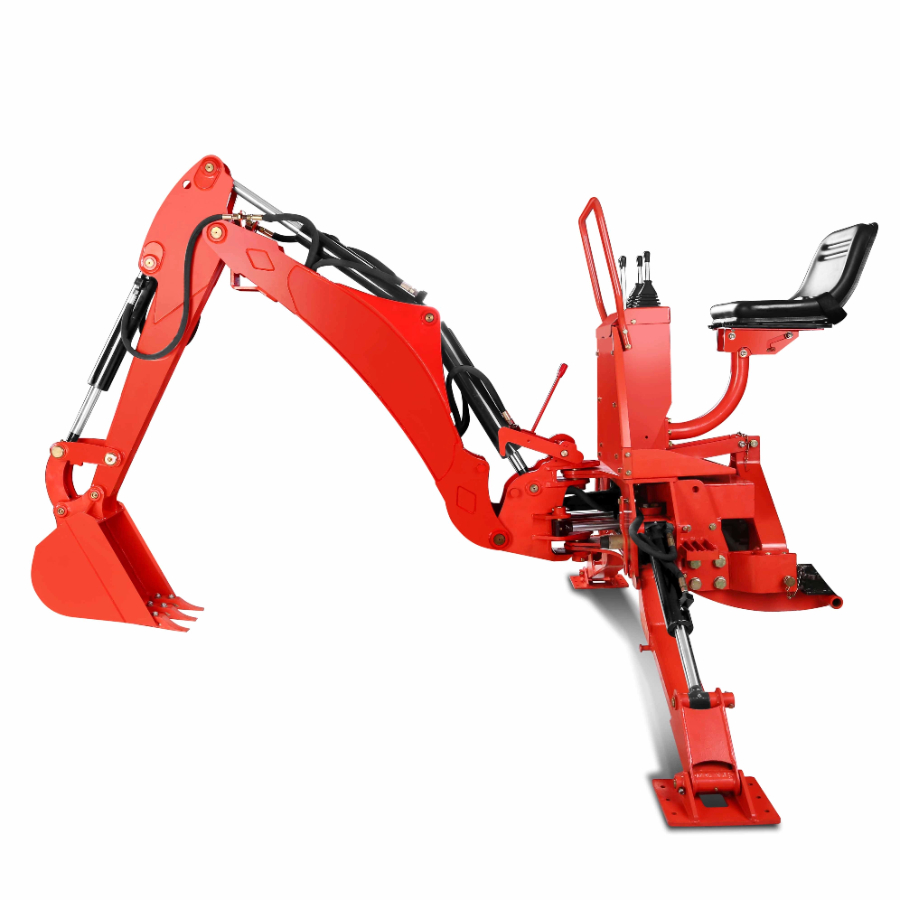

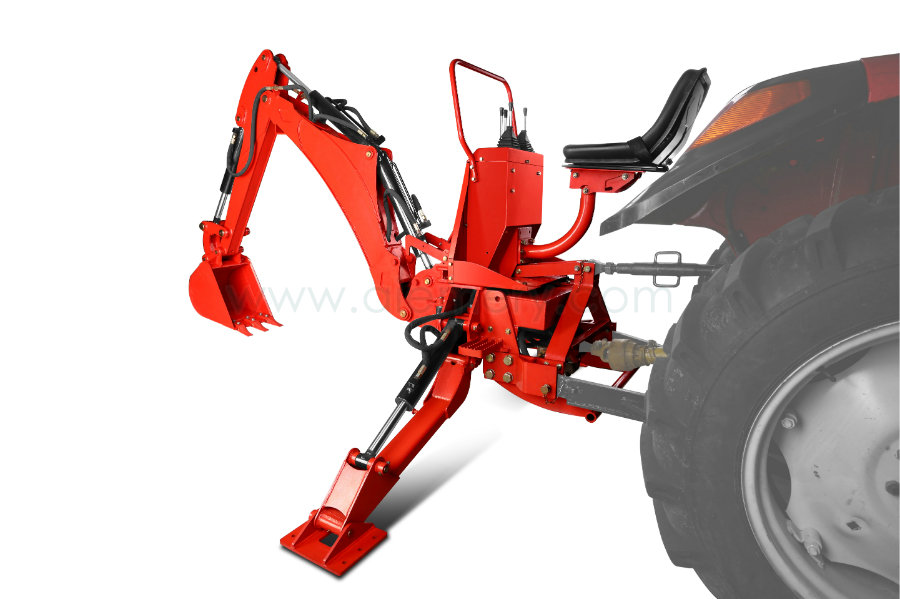

BK215 tractor backhoe or attachment exacvator is designed for universal medium tractors from 25 to 50hp category Ⅰ/Ⅱ linkage.

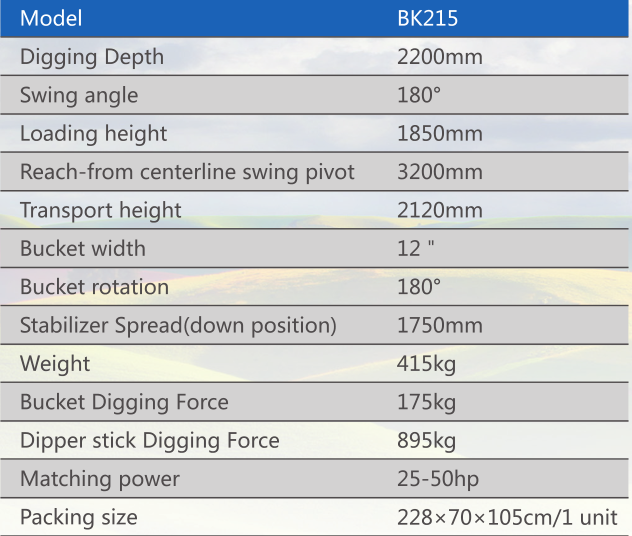

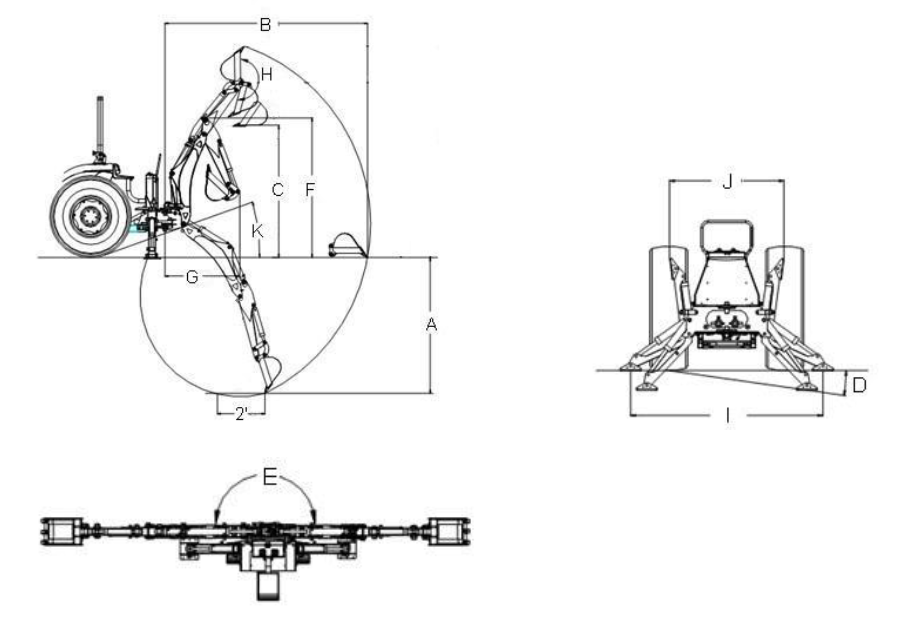

Backhoe Model | BK215 | ||
A | Digging Depth (two foot flat bottom) | 2200mm | 86.6” |
B | Reach from center line of Swing Pivot | 3200mm | 126” |
C | Loading Height | 1850mm | 72.8” |
D | Maximum Leveling Angle | 10° | 10° |
E | Swing Arc | 180° | 180° |
F | Transport Height (maximum) | 2180mm | 85.8” |
G | Transport Overhang | 1230mm | 48.4” |
H | Bucket Rotation | 180° | 180° |
I | Stabilizer Spread (down position) | 2110mm | 83” |
J | Stabilizer Spread (up position) | 1350mm | 53” |
K | Angle of Departure | 21° | 21° |
Shipping Weight (without bucket) | 415kg | 916(lbs) | |
Bucket Digging Force | 1175kg | 2592(lbs) | |
Dipperstick Digging Force | 895kg | 1975(lbs) | |
Operating Pressure | 160bar | 2320psi |
